Create an Agent in Advanced Mode

Advanced mode is the full-control view of the agent page in Flametree. Instead of the four guided tabs of Simple mode, you edit the agent's configuration directly: the raw prompt sections, a state-based workflow in YAML, the conversation result schema, attached tools, AI models, channels, and runtime settings.

Use Advanced mode when you need:

• A multi-step conversation flow with controlled states and transitions.
• Tools — actions the agent can perform beyond replying, such as calling your systems.
• A specific LLM, or speech models for a voice agent.
• Settings Simple mode does not expose: session limits, environment variables, webhooks, and more.

Both modes configure the same agent. You can switch between them at any time with the Advanced mode toggle in the upper-right corner of the agent page.

Before you start

• You are signed in to the portal with a role that can edit agents.
• An agent exists — see Agents. This page describes an Inbound Agent; other agent types show a subset of the same sections (for example, a Call Analytics agent has only the Conversation result section).
• An LLM connection exists in Settings > Connectivity — without a selected LLM the agent cannot run.

warning

In Advanced mode, saving does not restart the agent. After you click Save, restart the agent yourself: click Stop agent, wait for Stopped, then click Start agent. There is no separate restart action. Until you restart, the live agent keeps running with its previous configuration.

Switch between modes

1. Open the agent from AI Agents > Agents.
2. Click the Advanced mode toggle in the upper-right corner. The same toggle switches back to Simple mode.

If you have unsaved changes, a Switch to advanced mode (or Switch to simple mode) dialog warns that changes cannot be carried over without saving. Choose Save and switch, Switch without saving (your edits are discarded), or Cancel.

note

Some configurations made in Advanced mode — most commonly a custom workflow — cannot be displayed back in Simple mode. The affected Simple mode sections become read-only or unavailable, while the agent itself keeps working. See Simple mode for how each section behaves.

Find your way around

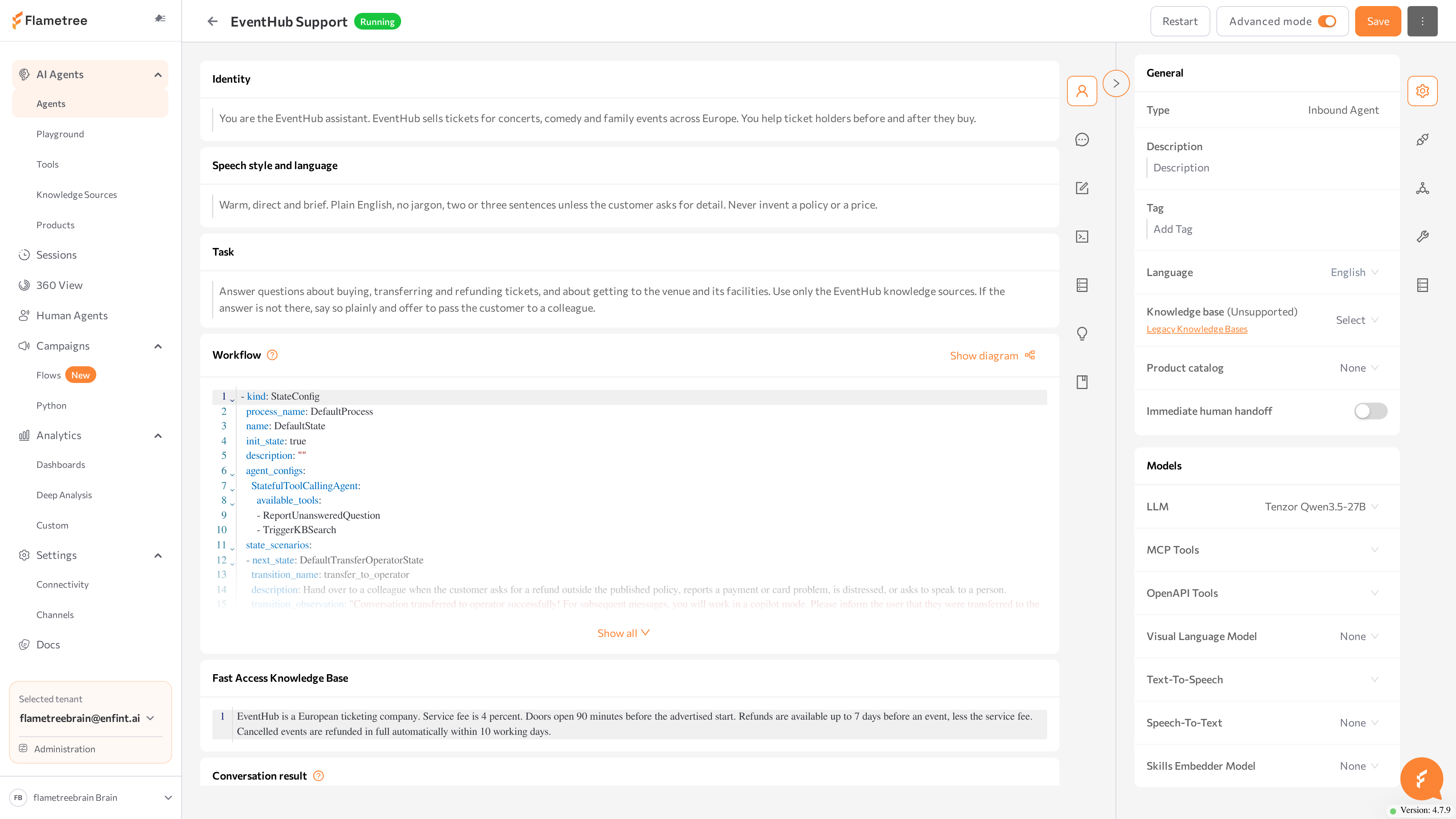

The page has two scrollable columns, each with a vertical icon bar for jumping between sections. The right column is the collapsible Settings panel — click its label to collapse or expand it.

The main column contains the prompt and logic sections:

Section	What you configure
Identity	Who the agent is: name, role, and organization.
Speech style and language	Tone, formality, and the languages the agent uses.
Task	The agent's objective and boundaries.
Workflow	The conversation flow as YAML states and transitions.
Fast Access Knowledge Base	Markdown reference content included in the agent's prompt.
Conversation result	The data fields the agent collects, defined in YAML.
Analytics	The deep analysis configuration for this agent's sessions.
Tool Groups	The tool groups attached to this agent.

The Settings panel on the right contains:

Card	What you configure
General	Read-only agent type, plus Description, Tag, Language, the legacy Knowledge base selector, Product catalog, and the Immediate human handoff switch.
Models	The LLM and other model connections the agent uses.
Web widget	The chat widget for your website.
Communication channels	The channel connections attached to this agent.
Advanced	Agent ID and token, default operator, session limits, Show RAG sources, environment variables, push notifications, and Copilot working hours.
Database	A database connection for agents that query SQL data.

The page header shows the agent name and status tag and holds the Advanced mode toggle, the Start agent / Stop agent button, the Save button, and a three-dot menu with Rename, Playground (while the agent is running), Show Logs, Show reports, Delete, Export agent, and Copy agent.

Unlike Simple mode, Advanced mode has no built-in test chat on the page. Test the agent on the Playground page instead.

Write the agent prompts

Three text sections define the agent's persona. Keep each section to its own concern — overlapping instructions are a common cause of inconsistent behavior:

Section	Answers	Does not belong here
Identity	Who is the agent?	Tone of voice, tasks
Speech style and language	How does it communicate?	Role, conversation logic
Task	What must it achieve?	Step-by-step flow — that is the workflow

Identity

The agent's name or persona, professional role, and the organization it represents.

Your name is John. You are a digital consultant at Example Inc., specializing in product and service inquiries.

Speech style and language

Tone, formality, allowances (slang, emojis), supported languages, and what to do when the customer switches languages.

You speak clearly, politely, and professionally. Avoid unnecessary jargon.
Detect the language used by the customer (for example, English, French, Spanish) and respond in that language.
If the customer switches language mid-conversation, adapt accordingly.

warning

State explicitly which languages the agent should use. If you don't, it may default to English.

Task

The primary objective, the business context, operational constraints, and what counts as success. Don't turn the task into a conversation script — sequencing belongs in the workflow.

Your main task is to assist customers with product-related questions, collect contact information if needed, and suggest a time for a call.
Your actions are restricted to the tools listed in the Available Tools section. You are not allowed to perform any other actions.

Welcome message

The opening message of a conversation is not a prompt section in Advanced mode. It is stored in the START_PHRASE environment variable — see Set environment variables. In Simple mode, the same value is edited as the Welcome message field.

Configure the workflow

The Workflow section defines the conversation flow as a state machine in YAML. Each state is one phase of the conversation with its own instructions and tools; the agent operates in exactly one state at a time and moves between states through transitions.

New agents come with a default workflow that supports the Simple mode features. Customize the workflow when you need:

• A strict multi-step process — for example, verify identity before discussing an account.
• Different instructions or tools at different stages of the conversation.
• Controlled escalation paths, such as a transfer to a human after repeated failures.

Fewer states make the agent more flexible; more states make it more predictable. Start with one or two states and add more only when needed.

tip

The ? icon in the Workflow section header opens the formatting reference for the YAML syntax.

Define states

Each state is one list item in the YAML:

- process_name: SupportProcess
  name: Greeting
  kind: StateConfig
  init_state: true

  description: |
    - Greet the human
    - Ask how you can help
    - Determine human intent

  available_tools:
    SingleStatefulOutboundAgent:
      - SendChatMessage

  state_scenarios:
    - next_state: Answer
      transition_name: human_question_received
      description: "human asks a question"

- process_name: SupportProcess
  name: Answer
  kind: StateConfig
  final_state: true

  description: |
    - Answer the human's question
    - Ask if additional help is needed
    - End the conversation

  available_tools:
    SingleStatefulOutboundAgent:
      - SendChatMessage
      - FinishSession

Field	What it does	Required
process_name	Groups related states into a process. Usually one workflow contains one process.	Yes
name	Unique state name. Use descriptive names such as Verification or Collection.	Yes
kind	Always StateConfig.	Yes
init_state	Marks the starting state.	Starting state only
final_state	Marks a state where the conversation can end.	Optional
description	The instructions the agent follows in this state: steps, guidelines, and example dialogues.	Yes
available_tools	The tools the agent can use in this state.	Yes

warning

A workflow must contain exactly one state with init_state: true. For text agents, include SendChatMessage in available_tools — without it the agent cannot send messages to customers.

A good description has three parts: numbered steps to follow, important guidelines (including limitations), and example dialogues for both successful and problematic turns. Avoid conflicting instructions, and give each state one clear goal.

Define transitions

Transitions in state_scenarios describe when the agent moves to another state:

state_scenarios:
  - next_state: Collection
    transition_name: verify_identity
    description: "Move to collection after confirming identity"

  - next_state: ScheduleReminder
    transition_name: begin_schedule_reminder
    description: "Schedule a reminder if human is busy"

Field	What it does	Required
next_state	The state to move to. Must reference an existing state name.	Yes
transition_name	A name for the transition — it appears in trace logs and helps you debug the flow.	Yes
description	The condition that triggers this transition.	Yes
attached_tools	Additional tools available during the transition.	No
transition_observation	A note recorded about the outcome of the transition.	No

Make conditions distinct: if two transitions can apply in the same situation, the agent may pick the wrong one or loop between states. Include a fallback transition for unclear replies and an escalation path for customers who ask for a person.

Preview the workflow as a diagram

To check the structure visually:

1. In the Workflow section header, click Show diagram.
2. Select Simple for a compact diagram or Extended for a more detailed one.
3. The diagram opens in a window — drag to pan and scroll to zoom.
4. Click Export as SVG to download the diagram.

Test workflow changes

1. Click Save.
2. Restart the agent: Stop agent, wait for Stopped, then Start agent.
3. Open the Playground and walk through your scenarios: the main path, an off-topic question, and each transition.
4. If a transition misfires, open the session's trace logs from Sessions and search for the transition_name to see what the model received and decided.

Define conversation results

The Conversation result section defines, in YAML, which data the agent extracts from each conversation — names, contact details, intents, or any custom fields. The agent fills the fields from what the customer says; it does not ask for the data unless your task or workflow tells it to.

- field_description: The name of the human
  field_name: HumanFullName
  field_title: Name
  field_type: str
  kind: FormInfoField
- field_description: Human's contact phone number
  field_name: HumanPhoneNumber
  field_title: Phone
  kind: FormInfoField
- field_name: Budget
  field_description: When human speaks about budget
  field_type: Literal['500', '1000', '2000']
  kind: FormInfoField

Parameter	Purpose
field_name	Internal field identifier used in configuration, logic, and integrations.
field_description	What the agent should collect — describe it the way customers phrase it.
field_title	Optional human-readable label shown in the interface and reports.
field_type	Expected value type, such as str, or Literal[...] for a fixed set of allowed values.
kind	Always FormInfoField.

Use a Literal type when the value must come from a fixed list — free-text answers vary and are harder to aggregate. The ? icon in the section header opens the formatting reference.

Collected values appear as session results in three places: the Parameters & results panel on the Sessions screen, the customer's profile in 360 View, and the Results tab in the Playground while you test.

This is the same data that Simple mode edits as toggles and custom fields on its Conversation Results tab — Advanced mode exposes the underlying YAML.

Set up deep analysis

The Analytics section holds the agent's deep analysis configuration — a YAML definition of LLM-based metrics that are calculated over the agent's sessions on a schedule, such as customer satisfaction or issue resolution. The current calculation status is shown next to the section title.

The section header has three actions:

• Recalculate — saves the configuration and recalculates all sessions from scratch.
• Continue calculation — saves the configuration and processes sessions not yet analyzed.
• Stop — stops a calculation in progress.

Configuration syntax, metric design, and the resulting dashboards are covered in Deep Analysis.

Attach tools

Tools let the agent act: send notifications, transfer to an operator, call external systems. Tools are grouped into tool groups, which you create and manage on the Tools page and attach to agents here.

1. Scroll to the Tool Groups section at the bottom of the main column.
2. Click Add tool group. A window lists the tool groups in your tenant — search by name, description, or label.
3. Check the groups you want and click Apply.
4. Click Save, then restart the agent.

Each attached group shows its name, description, the tools it contains, its status, and its creation date. To detach a group, open the three-dot menu on its row and click Delete — this removes the group from the agent without deleting it from the tenant.

Attaching a group makes its tools available to the agent; to let the agent use a tool in a particular state, also list the tool's name under that state's available_tools in the workflow.

Add knowledge

Fast Access Knowledge Base

The Fast Access Knowledge Base section holds Markdown content that is included in the agent's prompt, so the agent always has it available without searching. Use it for short, high-priority content — for example, a compact FAQ:

## Can I return a product?
Yes, you can return or exchange a product within 14 days if it remains in its original condition and packaging.

Because this content is part of every prompt, keep it short. Put larger content into Knowledge Sources, where it is retrieved only when relevant.

Knowledge Sources

The shared Knowledge Sources library (FAQs, plain text, websites, files, YouTube) is connected to the agent on the Knowledge Sources tab in Simple mode — switch the Advanced mode toggle off, connect the sources, and switch back. For the agent to search the connected sources, the workflow states where it answers questions must include the TriggerKBSearch tool; add ReportUnansweredQuestion to log questions the sources could not answer.

Legacy knowledge bases

The Knowledge base selector in the General card attaches a legacy knowledge base and is marked (Unsupported). Existing agents that use one keep working, but new agents should use Knowledge Sources instead — the legacy system is deprecated and does not receive new features. To move an agent off a legacy knowledge base, follow the Knowledge Sources migration guide.

Select AI models

The Models card in the Settings panel selects which model connections the agent uses. The connections themselves are created in Settings > Connectivity.

1. In the Settings panel, scroll to Models.
2. In the LLM row, select the language model connection. This is the model that generates the agent's replies.
3. Select connections in the other rows your agent needs (see the table below).
4. Click Save, then restart the agent.

Row	When you need it
LLM	Always — the agent does not run without it.
Text-To-Speech	Voice agents: converts the agent's replies to speech. You can select more than one connection.
Speech-To-Text	Voice agents: converts the caller's speech to text.
Visual Language Model	A model that combines visual understanding with text — select it when the agent must handle images.
MCP Tools	Tools provided by MCP servers. You can select more than one connection.
OpenAPI Tools	HTTP tools created from an OpenAPI specification. You can select more than one connection.
Skills Embedder Model	An embedding model that converts text to vectors.

The set of rows depends on the agent type — for example, a Call Analytics agent has a Transcription model row instead of the speech models.

Attach a product catalog

If your agent sells or recommends products, attach a product catalog so it can answer from your product data.

1. In the General card, find the Product catalog row.
2. Select a catalog from the list, or click Add new catalog to create one — the catalogs page opens in a new browser tab.
3. Click Save, then restart the agent.

Catalogs are created and managed on the Products page.

Attach channels

In Advanced mode, the agent's channels live in two cards of the Settings panel: Web widget and Communication channels. Channel connections — bot tokens, numbers, mail accounts — are created and managed in Settings > Channels; the agent page only attaches existing connections to this agent.

Attach a messaging or voice channel

1. Create and start the channel connection in Settings > Channels, if it does not exist yet.
2. On the agent page, scroll to Communication channels and click Add. The menu lists your channel types — Telegram, WhatsApp, Email (IMAP/SMTP), Sip, and others, depending on what is connected in your tenant.
3. Select the channel type. A block appears listing every connection of that type; check the connections to attach to this agent.
4. For each attached connection, set the Inbound switch: when it is on, the agent answers incoming messages on that connection. The switch is available only for connections you have checked.
5. Click Save, then restart the agent.

A connection can serve only one inbound agent at a time — one Telegram bot or one WhatsApp number answers as exactly one agent. Outbound conversations, where the agent writes first, are started from Campaigns.

The Add menu also lists legacy integrations configured per agent. They are hidden unless you turn on Show deprecated at the top of the menu and are marked DEPRECATED — use channel connections from Settings > Channels for new setups. An attached integration row can show a link icon that opens the Integration URLs window with values such as webhook addresses.

To detach a channel type from the agent, click the cross icon on its block (Delete channel). This detaches the connections from this agent; the connections themselves remain in Settings > Channels.

Set up the web widget

The Web widget card enables the chat widget on your website. Turn the Web widget switch on, then configure Display name, Show floating chat button, Primary color, the icon URLs, and Floating button size. The Html code row shows the embed snippet with a copy button, and the Open demo page button opens a hosted demo page to try the widget without touching your site. The widget itself is documented under Settings > Channels > Web Widget.

Adjust advanced settings

The Advanced card collects the agent's runtime settings.

Agent ID and token

The first two rows are the agent's ID and its API token. The token is masked — click the eye icon to reveal it; both rows have a copy button. Use them to call the agent through the API: the ID identifies the agent, and the token goes into the Authorization: Bearer header.

warning

The token grants API access to the agent. Share it only with systems that need it.

Operators, limits, and sources

Setting	What it does
Default operator	The portal users that this agent's handed-over sessions are assigned to by default. Type to search by name.
Max opened sessions	The maximum number of simultaneously open sessions (minimum 1). For voice agents this limits parallel calls.
Daily session limit	Caps how many sessions the agent starts per day. When the limit is reached, new session starts are blocked.
Show RAG sources	When on, replies based on knowledge search include the sources the answer came from.

Set environment variables

Environment variables fine-tune optional behaviors — greeting phrases, session timeouts, channel-specific options — without changing the main configuration.

1. In the Advanced card, click the + button next to Set Environment Variables.
2. In the Set Environment Variables window, click Add variable and fill in Key and Value. For example, the key START_PHRASE with the value Hello! How can I help you today? sets the agent's welcome message.
3. Check Secret to mask the value. A value saved as secret cannot be revealed again in the portal — to change it, enter a new value.
4. Click Save in the window, then Save on the agent page, and restart the agent. Variable changes take effect only after a restart.

Set push notification configuration

The agent can send webhook notifications to your system when selected events occur.

1. Click the + button next to Set push notification configuration.
2. In the Push Notification Configuration window, turn Enabled on and enter the URL to call.
3. Under Headers, add the HTTP headers your endpoint requires (name, value, optional Secret). Click Add Header for more rows.
4. In Events, select at least one event to be notified about.
5. Click Save in the window, then Save on the agent page.

Copilot working hours

Copilot working hours defines a weekly schedule for the agent's copilot work — the mode in which the agent drafts replies for human agents instead of answering customers directly (see Human Agents). For each day of the week, click + to add one or more time ranges with a start and end time; use the delete icon to remove a range.

Common issues

• The agent still behaves the old way after saving. Advanced mode does not restart the agent on save. Click Stop agent, wait for Stopped, then Start agent.
• The agent does not start or cannot begin conversations. Check that the workflow has exactly one state with init_state: true and that an LLM is selected in Models. Then check the logs from the three-dot menu (Show Logs).
• The agent stops replying in one state. That state's available_tools is probably missing SendChatMessage, which text agents need to send messages.
• The agent repeats the same message. Two transitions overlap, or the flow loops between similar states without an exit condition. Make transition descriptions distinct and add a fallback transition.
• An attached tool is never used. The tool group is attached, but the tool is not listed in available_tools of the state where you expect it.
• An environment variable has no effect. Variable changes require a restart — and a secret value cannot be unmasked, only replaced.
• The Language select in the General card is disabled. It shows "To choose an agent language, please select a translator integration first." — add a translator connection in Settings > Connectivity.
• Simple mode sections are read-only after your edits. Expected: configurations such as a custom workflow cannot be displayed in Simple mode. Continue editing in Advanced mode.
• The Inbound switch on a channel is disabled. Check the connection's checkbox first — the switch applies only to attached connections.

Related pages

• Simple mode — the guided view of the same agent
• Agents — create, start, stop, and export agents
• Playground — test the agent without connecting a channel
• Tools — create and manage tool groups
• Knowledge Sources — the shared knowledge library
• Settings > Connectivity — LLM and model connections
• Settings > Channels — channel connections the agent attaches
• Deep Analysis — metrics calculated from the Analytics section
• Sessions — review conversations, results, and trace logs
